LM-PSD14 |
|

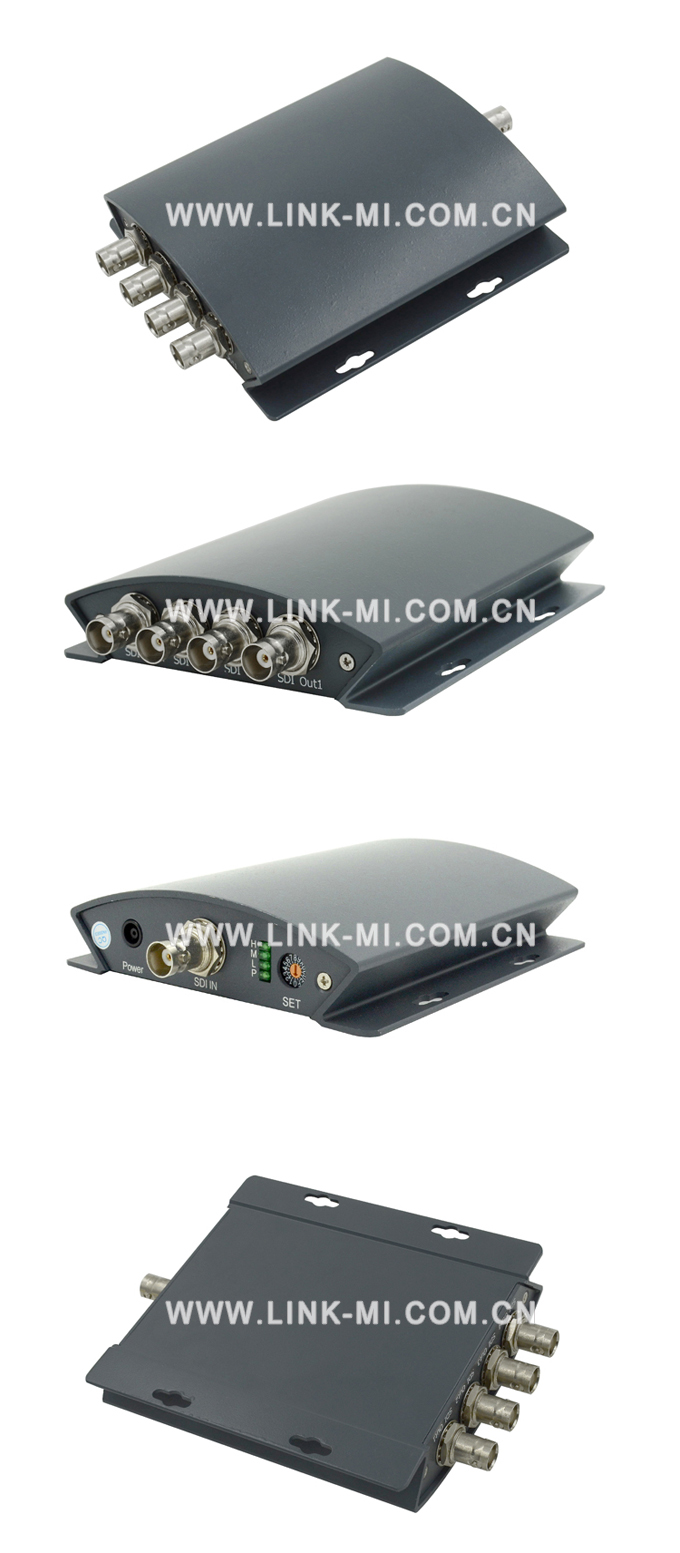

| LINK-MI LM-PSD14 Professional Broadcast 1x4 HD/3G SDI Splitter |
| |
Introduction:
1. Supports 3G/HD/SD SDI Signal Input2. Supports 3G/HD/SD SDI Signal Output3. Supports 1080p/1080i/720p/480i/576i Video format4. Supports 1080PSF/ 720P 30/25/24Hz5. Adaptively SDI Input signal6. SDI input embedded audio de-embedding7. SDI Output audio embedded8. Supports Up-Conversion and Down-Conversion function9. With three mode can be selected freely on Down-Conversion function10. Re-Clocking function11. Special features can be customized |
|
|
| |
|
|
|
|
Specification
|
Name |
Broadcast 1x4 3G/HD/SD SDI Splitter |
|
Model No. |
LM-PSD14 |
|
SDI Input |
Signal |
3G/HD/SD SDI |
|

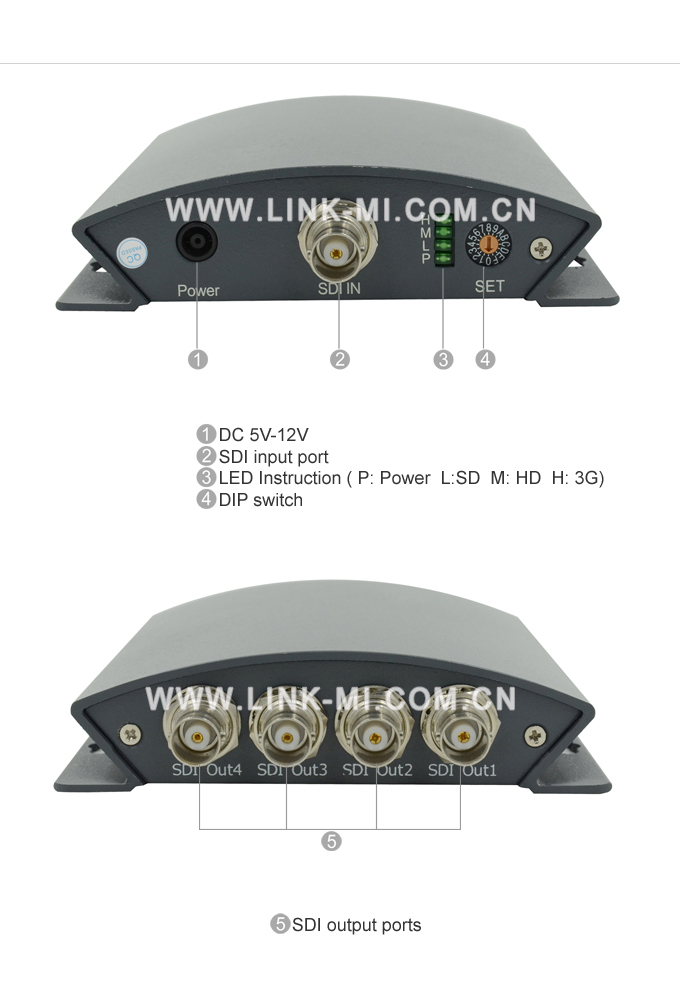

Connector |
BNC ( IEC169-8 Standard ) |
|
SMPTE |
270Mbps-2.97Gbps |
|
Ability of Equalization |
100M(3G SDI,1694A) |
|
Impedance |
75Ω |
|
SDI Output |
Output Signal |
HD SDI serial digital video signal |
|
Connector |
BNC ( IEC169-8 Standard ) |
|
SMPTE |
270Mbps~2.97Gbps |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
|
Power Consumption |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|
Control |

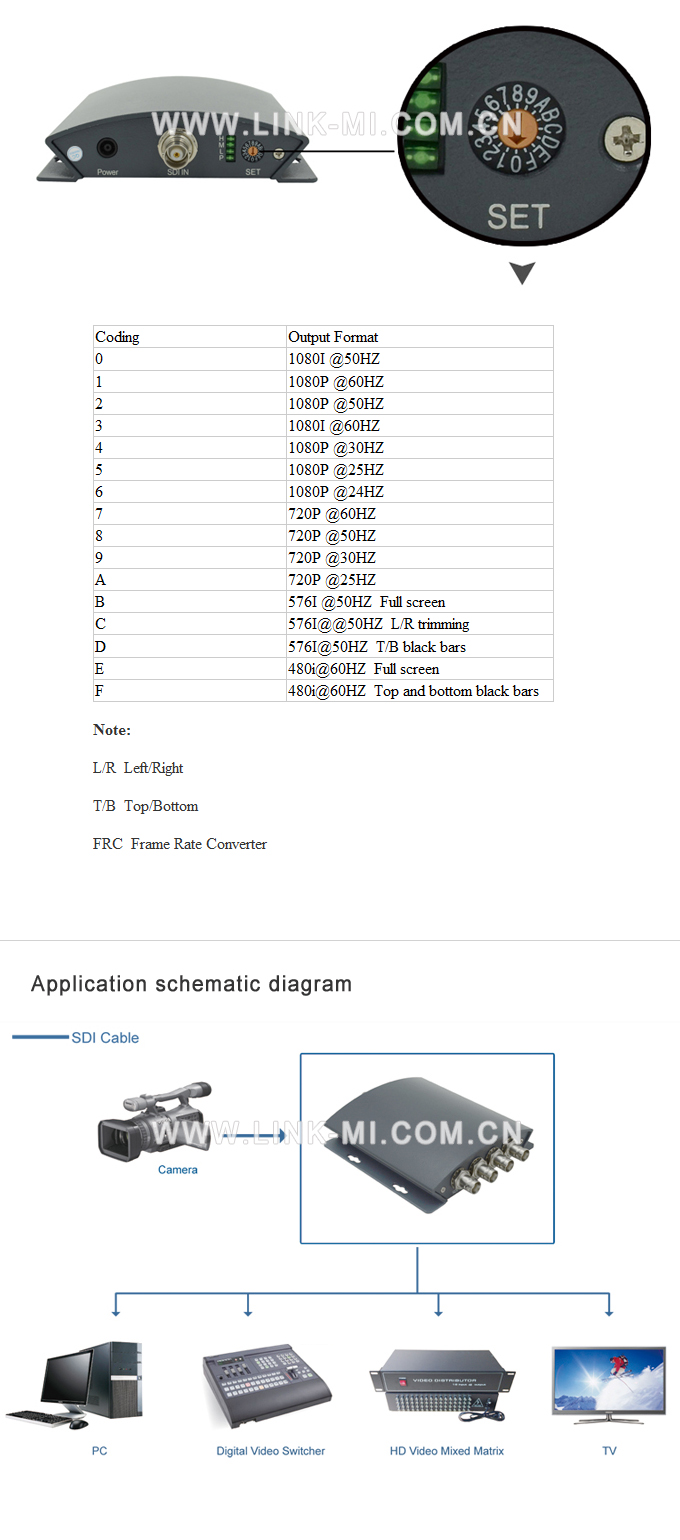

DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH |
Packing Contents
1. Main Unit. Broadcast 1x4 3G/HD/SD SDI splitter
2. 1pcs DC 5V Power Supply
3. 1pcs Manual
|
 |
|
|
|
|
